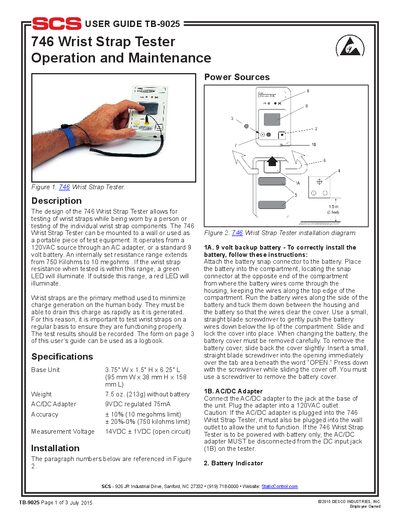

The StaticControl 746 Wrist Strap Tester User Manual provides installation, operation, testing, verification, and safety instructions.
The 746 Wrist Strap Tester is designed to measure the electrical resistance of wrist straps, either while worn or as individual components. It can be wall‑mounted or used as a portable unit and operates from a 120 VAC source via an AC adapter or a 9 V battery. The device indicates pass/fail with green or red LEDs based on a resistance range of 750 kΩ to 10 MΩ.
The guide covers power source connection, battery replacement, wall‑mount installation, testing procedures, verification with a resistance substitution box, and safety and warranty information. A logbook form is provided for recording test results.
| Dimensions | 3.75" W x 1.5" H x 6.25" L (95 mm W x 38 mm H x 158 mm L) |
|---|---|
| Weight | 7.5 oz. (213 g) without battery |
| AC/DC Adapter | 9VDC regulated 75 mA |
| Accuracy | ±10 % (10 MΩ limit) ±20‑0 % (750 kΩ limit) |
| Measurement Voltage | 14 VDC ±1 VDC (open circuit) |
It can operate from a 120 VAC source through an AC adapter or from a standard 9‑volt battery.
A green LED illuminates when the strap resistance is within 750 kΩ to 10 MΩ; a red LED illuminates when the resistance is outside that range.
