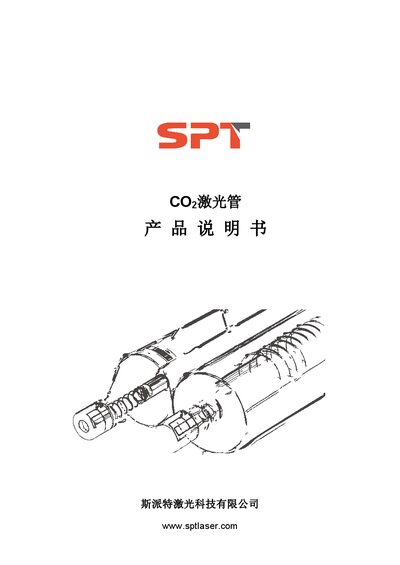

The manual provides safety guidelines, installation steps, technical specifications, and warranty information for Spt Laser CO2 laser tubes.
This manual covers safety precautions for handling Class 4 CO₂ laser tubes, including required protective eyewear, high‑voltage warnings, and proper labeling. It also details installation procedures, cooling requirements, and recommended operating parameters for the C, T, TR, and V series tubes.
Technical data such as output power, wavelength, tube dimensions, and cooling method are listed, followed by troubleshooting tips for common faults like insufficient engraving depth, high‑voltage arcing, and tube breakage. The document concludes with warranty terms and conditions for each series. This manual is written in Chinese.
| Output Power (W) | 30‑150 |
|---|---|
| Wavelength (µm) | 10.6 |
| Cooling Method | Water‑cooled 15‑30 °C |
| Tube Length (mm) | 600‑1800 |
| Tube Diameter (mm) | 50‑80 |
| Ignition Voltage (kV) | ≈35 kV |
C30‑C80 tubes have a 3‑month warranty, while C90‑C150 tubes are covered for 6 months from the date of shipment.
If scale forms, clean the cooling pipe with a 20 % diluted hydrochloric acid solution to remove deposits.
