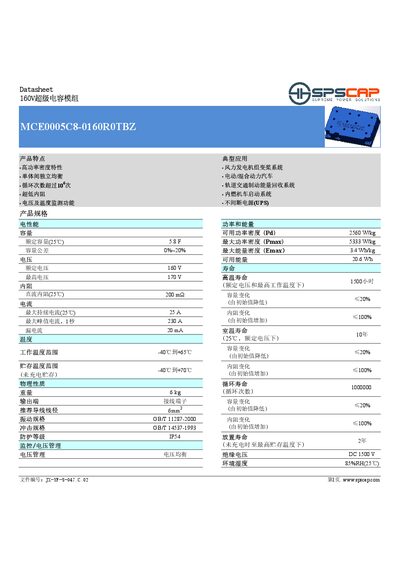

The SPSCAP MCE0005C8-0160R0TBZ datasheet provides specifications and features of a 160 V supercapacitor module.
The 160 V supercapacitor module offers high power density, low internal resistance, and voltage‑temperature monitoring, making it suitable for wind turbine pitch systems, electric/hybrid vehicles, rail‑way braking energy recovery, UPS, and other high‑power applications. It features independent cell balancing and can endure over one million charge cycles.
Key electrical specifications include a rated voltage of 160 V, rated capacity of 5.8 F at 25 °C, maximum power density of 5333 W/kg, DC resistance of 200 mΩ, continuous current of 25 A, and a peak 1‑second current of 230 A. The module weighs 6 kg and measures 365 mm × 232 mm × 80 mm. This manual is written in Chinese.
| Rated Voltage | 160 V |
|---|---|
| Rated Capacity (25 °C) | 5.8 F |
| Maximum Power Density | 5333 W/kg |
| DC Resistance (25 °C) | 200 mΩ |
| Maximum Continuous Current (25 °C) | 25 A |
| Maximum Peak Current (1 s) | 230 A |
| Protection Rating | IP54 |
| Operating Temperature Range | -40 °C to +70 °C |
The rated voltage is 160 V.
The maximum continuous current at 25 °C is 25 A.
It can handle a peak current of 230 A for 1 second.
The module has an IP54 protection rating.
