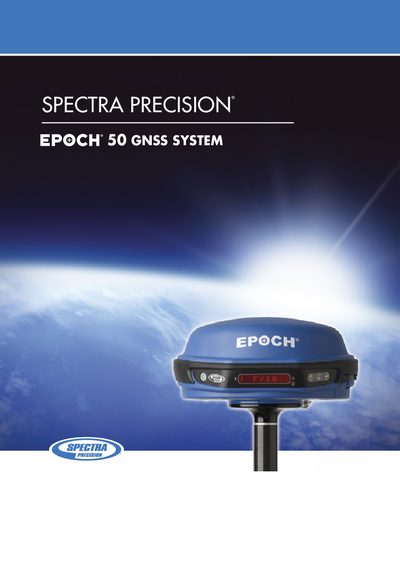

The Spectra Precision EPOCH 50 GNSS System User Guide provides safety instructions, setup steps, operation details and technical specifications.
This guide covers safety information for the EPOCH 50 GNSS receiver, including warnings, RF exposure limits, battery handling and antenna installation. It also explains regulatory compliance for FCC, CE, C‑Tick and other regions.
The manual details the receiver’s physical dimensions, power requirements, positioning accuracy, and how to configure the internal UHF and Bluetooth radios. Setup, connection, cabling, and troubleshooting procedures are described, along with default settings and software tools for radio configuration.
| Size (W x H x D) | 19.0 cm x 10.7 cm x 20.0 cm |
|---|---|
| Weight | 1.34 kg (2.95 lb) |
| Operating temperature | -20 °C to +60 °C |
| Average battery runtime (RTK/Static) | 4.0 hours |
| Horizontal positioning accuracy (RTK) | 0.25 m + 1 ppm RMS |
| External power input range | 10 V DC to 20 V DC |
| Maximum UHF transmit power | 1 W |
Maintain at least 20 cm (7.8 inches) separation from the radiating antenna.
The receiver accepts 10 V DC to 20 V DC on its power ports.
The internal UHF transceiver can transmit up to 1 W.
