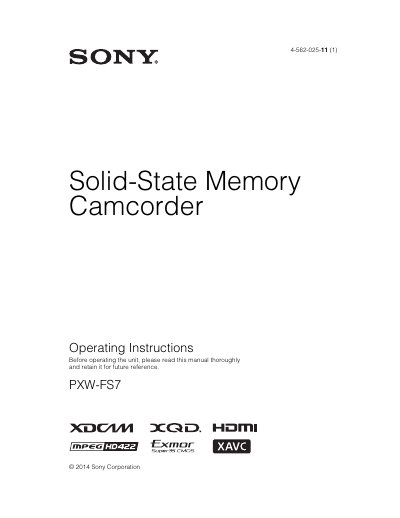

Operating instructions for the Sony PXW-FS7 solid-state memory camcorder, covering system configuration, part locations, shooting modes, and menu settings.
This manual provides operating instructions for the Sony PXW-FS7 Solid-State Memory Camcorder. It details the system configuration, location and function of parts including the viewfinder, lens, and various connectors, as well as preparation steps such as power supply usage and attaching accessories like microphones and remote controls.
The guide covers shooting procedures, including automatic and manual focus adjustment, audio monitoring, and setting recording formats. It also explains useful functions such as slow & quick motion, picture cache recording, and obtaining location information via GPS. Additionally, it provides instructions for connecting external devices using wireless LAN or cables.
| Screen size | 8.8 cm (3.5 inch) diagonal |
|---|---|
| Aspect ratio | 16:9 |
| Number of pixels | 960 (H)×540 (V) |
| XQD card slots for video recording | (2) |
| Utility SD card slot | (1) |
| Maximum voltage (Battery pack BP-U30) | 16.4 V DC |
| Nominal voltage (Battery pack BP-U30) | 14.4 V DC |
The aspect ratio of the screen is 16:9.
There are two XQD card slots available for video recording.
