SONOCHEK DBS30 Parabolic Sensor Operation Manual

The SONOCHEK DBS30 parabolic sensor manual provides safety instructions, installation, operation, maintenance, and technical data.

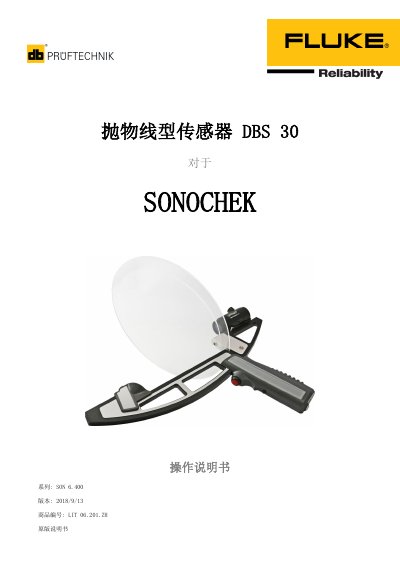

SONOCHEK DBS30 Parabolic Sensor Operation Manual - cover page
Brand
SONOCHEK
Category
Other device
Document type
User Manual
Language
Chinese
Pages
18
File format
PDF
File size
1.1 MB
Published
03 October, 2026
Updated
03 October, 2026
MD5 checksum
5247E0D94093A72A6196FE89A0FB1959
PDF
SONOCHEK DBS30 Parabolic Sensor Operation Manual PDF

About this manual

This manual describes the SONOCHEK DBS30 parabolic ultrasonic sensor, covering safety warnings, proper usage, and regulatory compliance. It explains the sensor’s components, interfaces, and optional accessories.

Key sections include installation and connection to the SONOCHEK instrument, operation steps, battery replacement, cleaning, disposal guidelines, and a full set of technical specifications. This manual is written in Chinese.

What's inside

  • General Information
  • Sensor Description
  • Sensor Interface
  • Laser and Light Spot Aiming
  • Operation
  • Battery Replacement
  • Disposal
  • Technical Data

Specifications

Maximum detection distance25 m
Frequency range20 kHz – 100 kHz
Measurement resolution1 dB
Dimensions (installed)270 x 440 x 390 mm
Weight750 g
Operating temperature-10 °C … +40 °C
Laser wavelength630 – 680 nm
Laser output power< 1.0 mW

Frequently asked questions

How far can the DBS30 sensor detect ultrasonic signals?

It can detect ultrasonic signals up to a maximum distance of 25 meters.

What is the frequency range of the DBS30 sensor?

The sensor operates over a frequency range of 20 kHz to 100 kHz.

How do I replace the battery in the DBS30 sensor?

Open the battery box with a suitable screwdriver, replace the battery observing polarity, and close the box.
