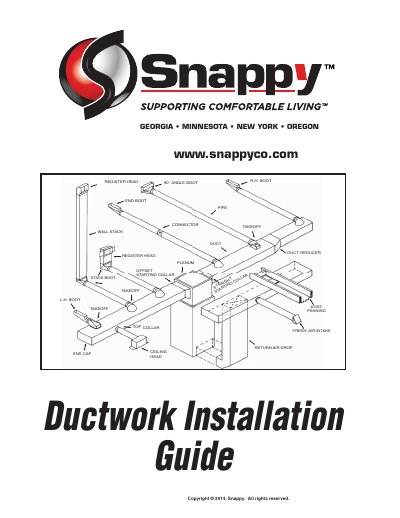

An installation guide for Snappy ductwork systems covering plenums, trunk lines, branch runs, and return air systems with product checklists.
This document serves as an installation guide for air distribution systems manufactured by Snappy. It outlines the four main stages of installation: Plenum, Main Trunk Line, Branch Runs, and Return Air. The guide provides instructions on preparing the site, selecting necessary tools, and assembling specific components like Universal and Custom plenums.
The goals are that the system is reasonably air tight, noise/vibration free, minimizes resistance to air flow, and is economical.
The guide lists a hammer, screwdriver, tin snips, sheet metal screws, metal hangers, duct/pipe & fittings, and a sabre saw as necessary supplies.
Trunk lines must come off the sides of the plenum and at least 6 inches below the top to maximize air mixing.
