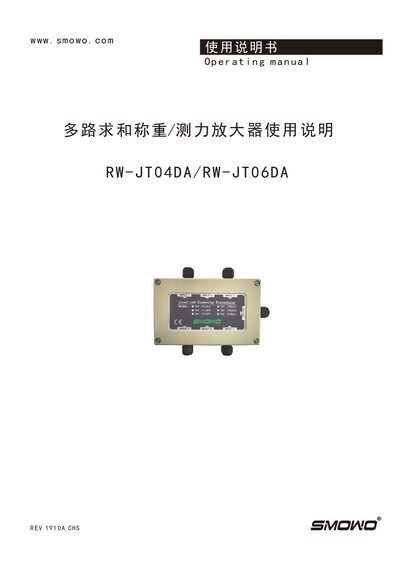

The SMOWO RW-JT04DA/RW-JT06DA operating manual provides specifications, wiring diagrams, and step‑by‑step setup and calibration instructions.
The RW‑JT04DA and RW‑JT06DA are multi‑channel summing amplifiers designed for weighing and force measurement. They accept up to six sensor inputs and can output voltage or current signals suitable for a variety of data acquisition systems.
This manual covers technical specifications, physical dimensions, wiring connections, adjustment procedures, example calculations, and warranty information, guiding users through installation, calibration, and troubleshooting. This manual is written in Chinese.
| Enclosure material | Cast aluminum |
|---|---|
| Net weight | 480 g |
| Sensitivity range | 0.5 mV/V ~ 7 mV/V |
| Supply voltage | DC 9 V ~ 24 V |
| Sensor excitation voltage | DC 5 V |
| Operating temperature | -20 °C ~ 60 °C |
| IP rating | IP65 |
| Thermal drift | <30 ppm/°C |
Press and hold the ">" key until the ZERO light turns on, release the key to enter zero‑adjust mode, then use the "+" or "‑" keys to set the output to zero.
The unit operates from a DC supply of 9 V to 24 V.
The manufacturer provides a one‑year limited warranty from the date of shipment.
