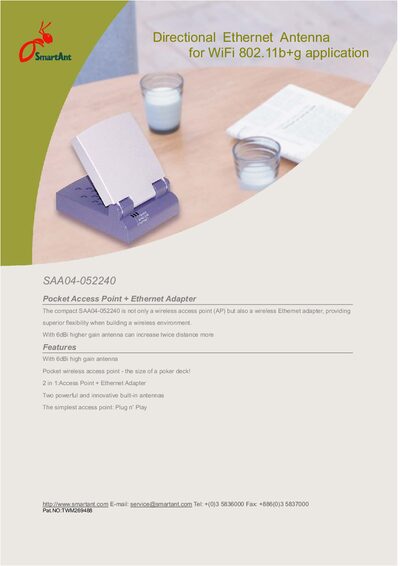

The SmartAnt SAA04-052240 is a compact 2‑in‑1 pocket access point and Ethernet adapter with a 6 dBi antenna, supporting IEEE 802.11b/g.
The SAA04-052240 Pocket Access Point + Ethernet Adapter combines a wireless access point and an Ethernet adapter in a small, plug‑and‑play package. It features a 6 dBi high‑gain antenna, LED status indicators, and a built‑in power adapter for easy deployment.
Technical specifications include IEEE 802.11b/g support, RJ45 100Base‑T Ethernet with auto‑MDI/MDI‑X, dimensions of 92 mm × 71 mm × 31 mm, and a power input of 100‑240 V AC with a 4 V / 1 A DC output. Security options cover 40/128‑bit WEP and WPA (including 802.1x and TKIP).
| Model Name | SAA04-052240 |
|---|---|
| Ethernet Interface | RJ45 for 100BaseT with auto crossover MDI/MDI‑X |
| Size | 92 mm L × 71 mm W × 31 mm H |
| Weight | 100 g (excluding power supply) |
| Power Input | AC 100‑240 V, 50‑60 Hz |
| DC Output | 4 V, max 1 A |
| Network Standard | IEEE 802.11b/g |
| Data Rate | 802.11g: 6‑54 Mbps; 802.11b: 1‑11 Mbps |
| Antenna Gain | 6 dBi high‑gain |
| Indoor Range (11 Mbps) | 260 ft (80 m) |
| Outdoor Range (11 Mbps) | 2000 ft (620 m) |
| Security | 40/128‑bit WEP, WPA (including 802.1x, TKIP) |
| Operating Temperature | 0 ~ 55 °C |
| Storage Temperature | -20 ~ 70 °C |
It supports IEEE 802.11b and IEEE 802.11g standards.
Use the hardware switch on the device to change between AP mode and Ethernet adapter mode.
The device offers 40/128‑bit WEP and WPA (including 802.1x and TKIP) security.
