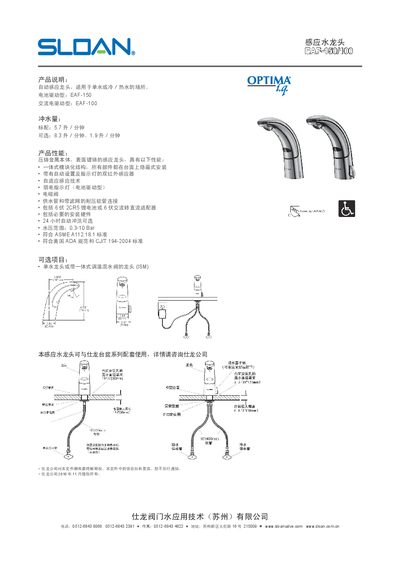

The Sloan EAF-150/100 induction faucet manual provides specifications, features, and installation options for battery‑ and AC‑powered models.
The EAF-150/100 is an automatic induction faucet suitable for single‑water or hot/cold water applications. Two power versions are offered: the battery‑driven EAF-150 and the AC‑powered EAF-100. Flow rates range from a standard 5.7 L/min to optional 8.3 L/min or 1.9 L/min settings.
The faucet features a die‑cast metal body with chrome plating, a modular concealed design, dual infrared sensors with auto‑setting and indicator lights, weak‑current indicator, and an electromagnetic valve. It operates within a water‑pressure range of 0.3‑10 Bar and complies with ASME A112.18.1, U.S. ADA, and CJ/T 194‑2004 standards. Optional accessories include an integrated temperature‑mixing valve (ISM). This manual is written in Chinese.
| Power type | Battery‑driven (EAF-150) and AC‑powered (EAF-100) |
|---|---|
| Standard flow rate | 5.7 L/min |
| Optional flow rates | 8.3 L/min or 1.9 L/min |
| Water pressure range | 0.3‑10 Bar |
| Compliance standards | ASME A112.18.1, U.S. ADA, CJ/T 194‑2004 |
| Battery type (EAF-150) | 6 V 2CR5 lithium battery |
| Body material | Die‑cast metal with chrome plating |
| Sensors | Dual infrared sensors with auto‑setting and indicator light |
| Optional accessory | Integrated temperature‑mixing valve (ISM) |
The EAF-150 version is battery‑driven, while the EAF-100 version is AC‑powered.
The standard flow rate is 5.7 L/min, with optional settings of 8.3 L/min or 1.9 L/min.
It complies with ASME A112.18.1, U.S. ADA, and Chinese CJ/T 194‑2004 standards.
Yes, an integrated temperature‑mixing valve (ISM) is offered as an optional accessory.
