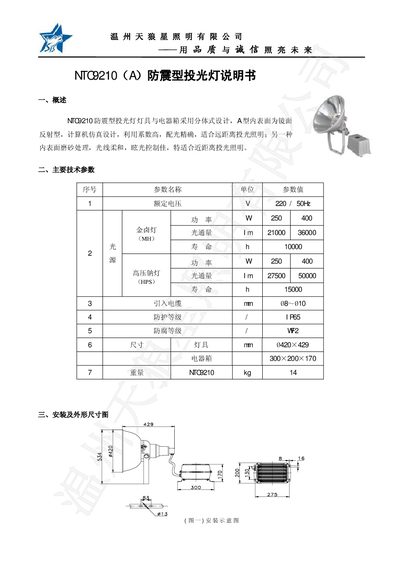

The Sirius Lighting NTC9210(A) anti‑vibration floodlight manual provides specifications, installation instructions, and performance details.
The NTC9210(A) anti‑vibration floodlight from Sirius Lighting is a split‑type industrial lighting fixture with a mirror‑finished or frosted inner surface, designed for long‑distance or close‑range illumination respectively.
The manual details technical parameters, installation dimensions, performance features such as high shock resistance, IP65 waterproofing, and a six‑year warranty with a one‑year guarantee for the light source. This manual is written in Chinese.
| Rated Voltage | 220 V / 50Hz |
|---|---|
| Metal Halide Power | 250‑400 W |
| Metal Halide Luminous Flux | 21000‑36000 lm |
| Metal Halide Lifetime | 10000 h |
| High‑Pressure Sodium Power | 250‑400 W |
| High‑Pressure Sodium Luminous Flux | 27500‑50000 lm |
| High‑Pressure Sodium Lifetime | 15000 h |
| Cable Size | Ø8‑Ø10 mm |
| Protection Rating | IP65 |
| Corrosion Resistance Grade | WF2 |
| Lamp Dimensions | Ø420×429 mm |
| Electrical Box Dimensions | 300×200×170 mm |
| Weight | NTC9210 kg |
| Power Factor | ≥ 0.9 |
The floodlight has an IP65 protection rating.
The product is covered by a six‑year warranty, with a one‑year guarantee for the light source.
The housing is made of high‑quality aluminum alloy with a spray‑coated surface for strong impact and corrosion resistance.
