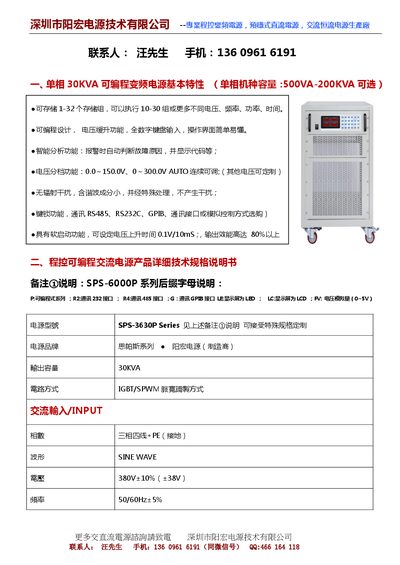

The Sipas SPS-3630P is a single‑phase 30 kVA programmable variable frequency power supply with adjustable voltage, frequency, and multiple protection features.
The SPS‑3630P series from Sipas offers a programmable AC power source with a 30 kVA rating. It supports single‑phase operation, IGBT/SPWM topology, and provides adjustable output voltage (0‑150 V low, 0‑300 V high) and frequency (50/60 Hz ±5% or 45‑200 Hz). The unit includes digital keypad entry, LED/LCD display, and optional soft‑start and voltage‑ramp functions.
Designed for a wide range of applications such as home appliances, medical equipment, and industrial manufacturing, the power supply features over‑current, over‑voltage, overload, current‑limit, over‑temperature, and short‑circuit protection, as well as optional RS‑232, RS‑485, GPIB, or analog control interfaces. It meets CE, EN60950‑1, EN5502, EN61000, and EN55024 certifications and comes with a 3‑month free replacement and 12‑month free repair warranty. This manual is written in Chinese.
| Output Capacity | 30 kVA |
|---|---|
| Input Voltage | 380 V ±10 % |
| Output Voltage Range (Low) | 0‑150 V continuous |
| Output Voltage Range (High) | 0‑300 V continuous |
| Output Frequency | 50/60 Hz ±5% (switchable) |
| Power Factor | >0.9 |
| Efficiency | >80 % |
| Frequency Stability | ≤0.01 % |
| Dimensions (W×D×H) | 1050 mm × 610 mm × 1100 mm |
| Weight | 250 kg |
The unit provides over‑current, over‑voltage, overload, current‑limit, over‑temperature, and short‑circuit protection.
Optional interfaces include RS‑232, RS‑485, GPIB, and analog control signals.
It is suitable for home appliances, electronics manufacturing, medical equipment, IT, laboratory, shipbuilding, aerospace, and military applications.
