Sinopec FC Series Intelligent Differential Pressure/Pressure/Level Transmitter User Manual

This manual describes the operation, installation, wiring, and specifications of the Sinopec FC series intelligent differential pressure, pressure and level…

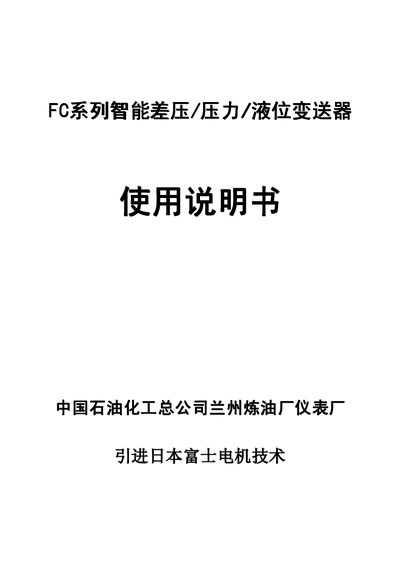

Sinopec FC Series Intelligent Differential Pressure/Pressure/Level Transmitter User Manual - cover page
Brand
SINOPEC
Document type
User Manual
Language
Chinese
Pages
17
File format
PDF
File size
306 KB
Published
30 October, 2011
Updated
08 October, 2026
MD5 checksum
8A9C583BC6D2E8837A1E44AF40C95BC5

About this manual

The FC series intelligent transmitters are capacitive pressure devices used to measure differential pressure, pressure and liquid level for various fluids. They convert the measured pressure into a 4‑20 mA current or HART signal and offer high accuracy and stability.

The document provides a functional overview, operating principle, detailed installation instructions, wiring guidelines, adjustment procedures, and full technical specifications, including power supply, output, temperature range, and pressure limits. This manual is written in Chinese.

What's inside

  • Overview
  • Operating Principle
  • Functional Parameters
  • Technical Specifications
  • Installation
  • Steam Measurement
  • Liquid Measurement
  • Operation Instructions
  • Specification Selection Table

Specifications

Power supply voltage12 – 45 VDC (typical 24 VDC)
Output signal4 – 20 mA DC / HART
Load resistance (24 VDC)0 – 600 Ω
Operating temperature range-40 °C to 85 °C (amplifier)
Basic measurement error±0.075 % (adjustable to ±0.05 %)
DampingNone (time constant <0.1 s)
Startup time1 s (no pre‑heat required)

Frequently asked questions

How do I adjust zero and span on the FC series transmitter?

Zero, span, damping and output check buttons are located on the front panel of the transmitter; they can be adjusted manually or via a Rosemount 268 communicator.

What power supply voltage should be used?

The transmitter operates from 12 – 45 VDC, with 24 VDC being the typical supply voltage.

How should the signal wiring be connected?

Signal terminals are in a separate compartment; use an unshielded twisted‑pair cable, keep it away from power lines, and seal any wiring holes to prevent moisture.

What is the allowed operating temperature range?

The amplifier works from –40 °C to 85 °C; the silicone‑oil‑filled measurement element works from –40 °C to 104 °C.
