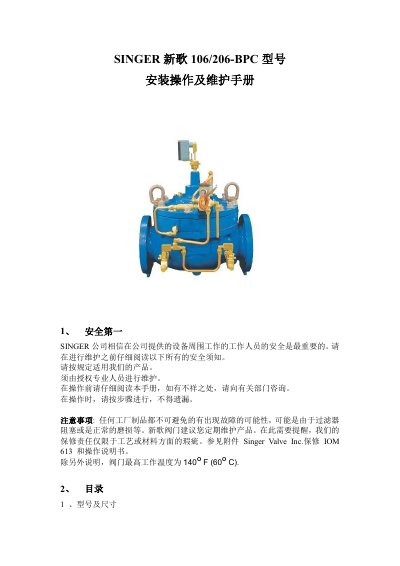

This manual provides installation, operation, maintenance, and troubleshooting instructions for the Singer 106/206-BPC water pump control valve.
This manual covers the Singer 106/206-BPC water pump control valve, designed to prevent water hammer caused by pump start and stop cycles. It details the valve's single-seat, double-chamber hydraulic design with an integrated check valve and describes its installation requirements, including space clearance and flow direction alignment. This manual is written in Chinese.
| Maximum Operating Temperature | 140°F (60°C) |
|---|---|
| Size Range | 1/2" - 36" |
| Maximum Working Pressure | 16 or 25 bar or 40 bar |
| Maximum Working Pressure (PSI) | 150 psi or 300 psi or 400 psi |
| Post-Valve Pressure Setting Range | 1-16 bar |
The maximum operating temperature is 140°F (60°C).
The standard post-valve pressure setting range is 1-16 bar.
The actual direction of water flow must be consistent with the arrow direction cast on the valve body.
