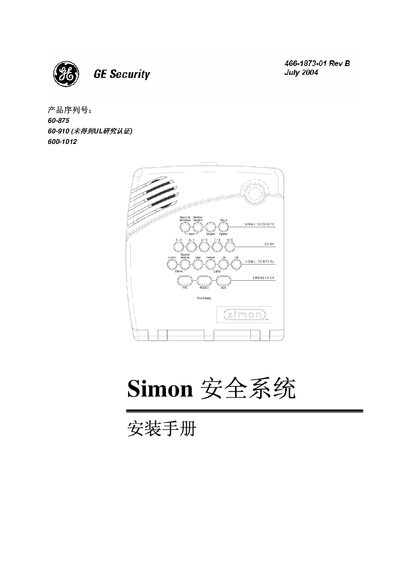

Installation guide for the Simon 60-875/60-910 security system, covering wiring, component setup, programming and testing.
This manual provides step‑by‑step instructions for installing the Simon 60‑875/60‑910 security system. It explains required FCC compliance, power requirements, and the layout of system components such as control panels, detectors and X10 modules.
Key sections cover customer premises wiring, alarm dialing via RJ31X, programming options, testing procedures, and troubleshooting alerts. Technical specifications and safety warnings are included at the end of the document. This manual is written in Chinese.
| Power supply | 9VAC, 700mA |
|---|---|
| Battery | 6VDC, 1.2Ah |
| Frequency (60‑875) | 319.5 MHz |
| Frequency (60‑910) | 433 MHz |
| Range | 500 feet (152 m) |
| Operating temperature | -29 °F to 140 °F |
| Storage temperature | 32 °F to 120 °F |
| Maximum humidity | 90 % relative humidity |
The FCC ID is B4Z‑787B‑SIMON.
The system uses an RJ31X connector for alarm dialing.
It requires a 9 VAC supply capable of delivering 700 mA.
The backup battery is 6 VDC with a capacity of 1.2 Ah.
