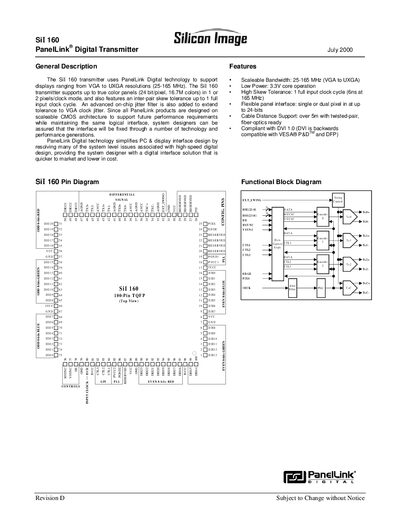

The SiI 160 PanelLink Digital Transmitter is a 3.3 V CMOS device supporting VGA‑to‑UXGA resolutions with up to 5 m cable distance.
The SiI 160 PanelLink® Digital Transmitter uses scalable CMOS architecture to drive displays from VGA to UXGA (25‑165 MHz). It operates on a 3.3 V core, offers low power consumption, high skew tolerance, and supports both single‑pixel and dual‑pixel modes. The device includes an on‑chip jitter filter and can transmit over twisted‑pair or fiber‑optic cables up to more than 5 m.
The datasheet provides detailed electrical specifications, pin descriptions, timing diagrams, and package dimensions for the 100‑pin TQFP package. It also lists absolute maximum and normal operating conditions, AC specifications, and power‑down behavior, along with ordering information and application notes references.
| Bandwidth | 25‑165 MHz |
|---|---|
| Core Supply Voltage | 3.3 V |
| Power Dissipation | 1 W |
| High‑level Input Voltage (VIH) | 2 V |
| Low‑level Output Voltage (VOL) | 0.4 V |
| Cable Distance Support | over 5 m |
It supports resolutions from VGA to UXGA, corresponding to a bandwidth of 25‑165 MHz.
The device operates on a 3.3 V core supply.
It can transmit over more than 5 m of twisted‑pair cable.
VIH is 2 V and VIL is 0.8 V.
