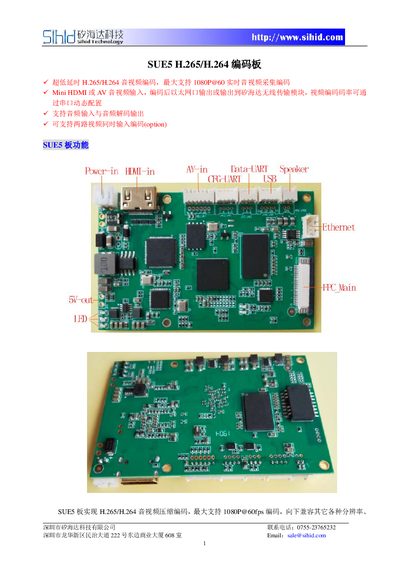

The Sihid SUE 5 encoder board provides ultra‑low‑latency H.265/H.264 video encoding up to 1080P@60 with HDMI/AV inputs and Ethernet or wireless output.
The SUE 5 board delivers ultra‑low‑delay H.265/H.264 audio‑video encoding, supporting a maximum resolution of 1080P@60 fps. It accepts Mini HDMI or AV video inputs and can output encoded streams via an Ethernet port or the company’s wireless transmission modules.
The device operates on a 7‑24 V supply, consumes 2.28 W at 1080P60 H.265 encoding, and provides a 5 V output for accessories. Physical dimensions are 70 × 45 mm with a weight of 15.5 g. Various LEDs indicate power, video lock, and encoding status, while multiple UART, USB, and speaker interfaces support configuration, data transfer, and audio playback. This manual is written in Chinese.
| Maximum video resolution | 1080P@60 fps |
|---|---|
| Supported video codecs | H.265, H.264 |
| Audio codec | AAC |
| Power consumption (1080P60 H.265) | 2.28 W |
| Board dimensions | 70 mm × 45 mm |
| Board weight | 15.5 g |
| LED indicators | Power, video lock, encoding status |
