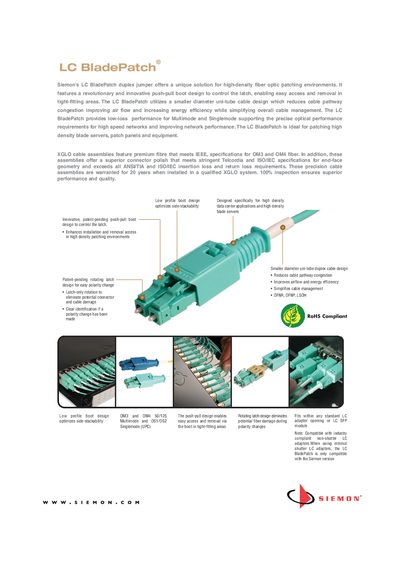

The Siemon LC BladePatch duplex jumper provides a low‑profile, push‑pull boot design for high‑density fiber optic patching with RoHS compliance and full…
The LC BladePatch duplex jumper features an innovative push‑pull boot design that controls the latch, allowing easy installation and removal in tight, high‑density environments. Its low‑profile boot optimizes side‑stackability and the smaller uni‑tube cable reduces congestion, improves airflow, and simplifies cable management.
The product supports OM3, OM4 multimode and OS1/OS2 singlemode fibers, offering low insertion loss and high return loss performance. Detailed specifications, polarity options, and ordering information are provided for data‑center and blade‑server applications.
| Fiber Type – OM3 | 50/125 µm Multimode |
|---|---|
| Fiber Type – OM4 | 50/125 µm Multimode |
| Fiber Type – OS1/OS2 | Singlemode |
| Cable Bandwidth (OM3) | 1500 MHz·km (OFL) |
| Insertion Loss (OM3) | 0.15 dB (0.10 dB typical) |
| Return Loss (OM3) | 30 dB (35 dB typical) |
The push‑pull boot design controls the latch, enhancing installation and removal access in high‑density environments.
Yes, the product is RoHS compliant.
It supports OM3 and OM4 multimode fibers as well as OS1/OS2 singlemode fiber.
The maximum insertion loss is 0.15 dB (0.10 dB typical).
