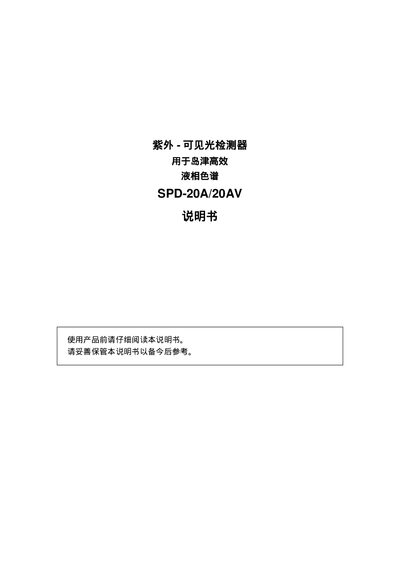

Shimadzu SPD-20A/20AV UV-Vis Detector User Manual

The Shimadzu SPD-20A/20AV UV‑Vis detector user manual provides installation, safety, operation, warranty and technical specifications.

Brand: Shimadzu
Document type: User Manual
Language: Chinese
Pages: 256
File format: PDF
File size: 5.4 MB
Published: 29 September, 2026
Updated: 29 September, 2026
MD5 checksum: 151FBC78F43F1BADD8DC9B0F0A6EB461
PDF: Shimadzu SPD-20A/20AV UV-Vis Detector User Manual PDF

About this manual

This manual introduces the Shimadzu SPD-20A/20AV UV‑Vis detector, covering installation requirements, power specifications, safety precautions, hardware certification and warranty information. It emphasizes proper ventilation, grounding, and fire‑prevention measures when the detector is used with flammable HPLC solvents.

Technical details such as power voltage options, power consumption, and weight are listed, and a troubleshooting chapter guides users through common fault conditions. The document also includes a detailed list of compatible solvents and their properties for liquid chromatography applications. This manual is written in Chinese.

What's inside

Introduction
Safety Instructions
Installation Guidelines
Power Supply and Voltage
Warranty and Service
Hardware Certification
Technical Information
Solvent Characteristics

Specifications

Power voltage (AC100V)	160 VA, 50/60 Hz
Power voltage (AC120V)	160 VA, 50/60 Hz
Weight	13 kg

Frequently asked questions

What does the warranty cover for the SPD-20A/20AV?

The warranty covers defects caused by the manufacturing process, with free replacement parts or repair provided during the warranty period; consult a Shimadzu office for details.
