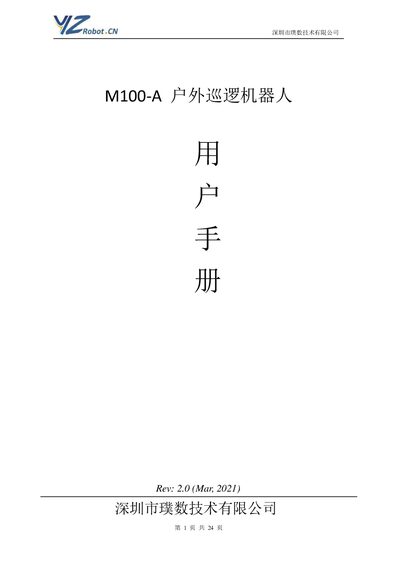

The manual provides setup, operation, and maintenance instructions for the M100-A outdoor patrol robot.
The M100-A is a 4‑wheel, waterproof and dust‑proof outdoor patrol robot equipped with a Hikvision high‑definition varifocal IPC camera, a FLIR industrial infrared thermal imager, a 16‑line laser lidar and GPS for autonomous navigation. It supports 2K video, optical zoom (4× standard, 18× optional) and can be fitted with Wi‑Fi or 4G communication modules. An automatic charging dock enables 7×24‑hour continuous operation.
The manual covers initial setup steps such as map creation, charging‑dock placement, Wi‑Fi network configuration, and installation of the MRX remote‑client software. It also explains how to use the client interface for monitoring, patrol task scheduling, and video/thermal imaging, as well as detailed procedures for configuring camera IPs and wireless bridge settings. This manual is written in Chinese.
| Drive | 4‑wheel drive |
|---|---|
| Ingress Protection | Waterproof and dust‑proof |
| Main Camera | Hikvision high‑definition varifocal IPC camera |
| Lidar | 16‑line remote laser lidar |
| Positioning | GPS for automatic navigation |
| Optical Zoom | Standard 4×, optional 18× |
| Video Resolution | 2K high‑definition |
| Continuous Operation | 7×24 hour nonstop work |
The default password is 123456; you should change it after first login.
Charge the robot on its charging dock for at least 3 hours and ensure the battery level is above 50 % before starting configuration.
A Wi‑Fi router must be installed in the work area and its SSID and credentials recorded for the robot’s network configuration.
