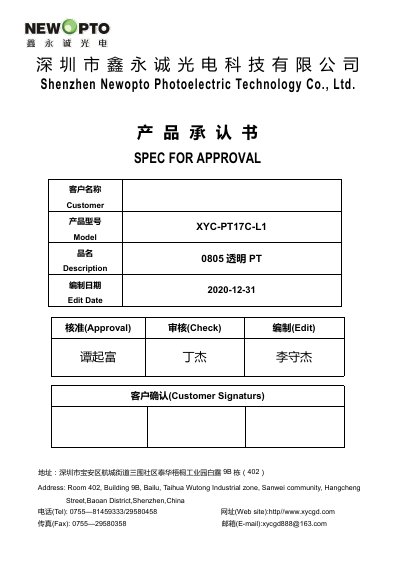

The XYC-PT17C-L1 PT-850 series high‑sensitivity photoelectric sensor approval sheet provides specifications, optical characteristics, reliability tests…
The XYC-PT17C-L1 is a high‑sensitivity, SMD‑package photoelectric sensor with a peak wavelength of 850 nm. It is designed for light‑controlled lighting, LCD back‑light adjustment, camera modules, infrared testing equipment and other light‑controlled applications.
The document includes product information, absolute maximum ratings, electro‑optical characteristics, reliability test results, typical characteristic curves, application circuit, mechanical dimensions, packing specifications, soldering recommendations and safety precautions. This manual is written in Chinese.
| Peak wavelength | 850 nm |
|---|---|
| Power consumption | 70 mW |
| Operating temperature range | -30 °C to +85 °C |
| Storage temperature range | -40 °C to +100 °C |
| Collector‑emitter breakdown voltage (VCEO) | 30 V |
The sensor’s peak wavelength is 850 nm.
Use a soldering iron of less than 25 W, keep the tip temperature below 300 °C, and limit the soldering time to under 2 seconds per joint.
