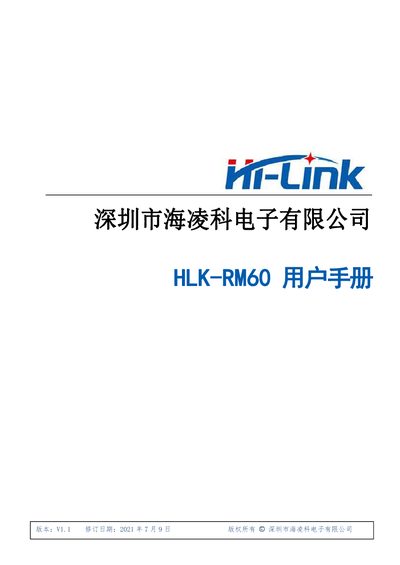

The HLK‑RM60 user manual provides an overview, specifications, pinout, and configuration steps for the WiFi6 module.
This manual introduces the HLK‑RM60 high‑performance embedded WiFi6 module, covering its IEEE 802.11a/b/g/n/ac/ax compliance, dual‑band RF transceiver, and built‑in TCP/IP stack. It details the module’s hardware architecture, interfaces, and application areas such as smart home and IoT devices.
The document also includes electrical parameters, pin descriptions, mechanical dimensions, LED indicators, and step‑by‑step instructions for accessing the web configuration page, setting WiFi hotspot credentials, and enabling transparent transmission mode. This manual is written in Chinese.
| Wi‑Fi Standard | IEEE 802.11a/b/g/n/ac/ax |
|---|---|
| CPU | 32‑bit RISC CPU |
| Memory | DDR2 128 MB |
| Flash | 16 MB |
| Operating Temperature | -20 °C ~ +60 °C |
| Dimensions | 90 mm × 60 mm |
| Current Consumption (average) | ~750 mA |
| Supported Wi‑Fi Modes | STA and AP |
Press the Config button on the module to open the Wi‑Fi SSID and password configuration page.
The module supports both STA (client) and AP (access point) modes.
