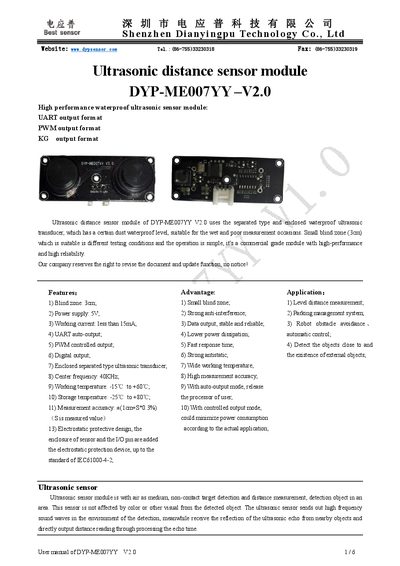

User manual for the DYP-ME007YY V2.0 ultrasonic distance sensor module, covering features, specifications, wiring and output formats.
The DYP-ME007YY V2.0 is a waterproof ultrasonic distance sensor with UART, PWM and digital (KG) output options. It offers a small blind zone, low power consumption and high measurement accuracy for applications such as level detection, parking management and robot obstacle avoidance.
The manual provides detailed electrical parameters, pin definitions, output frame structures and mechanical test setups, helping users integrate the sensor into their systems and select the appropriate output mode. This manual is written in Chinese.
| Blind zone | 3 cm |
|---|---|
| Power supply voltage | 5 V DC |
| Working current | < 15 mA |
| Center frequency | 40 kHz |
| Working temperature range | -15 °C to +60 °C |
| Storage temperature range | -25 °C to +80 °C |
| Measurement accuracy | ±(1 cm + S·0.3 %) |
The sensor has a blind zone of 3 cm.
It operates from a 5 V DC supply.
The accuracy is ±(1 cm + S × 0.3 %) where S is the measured value.
