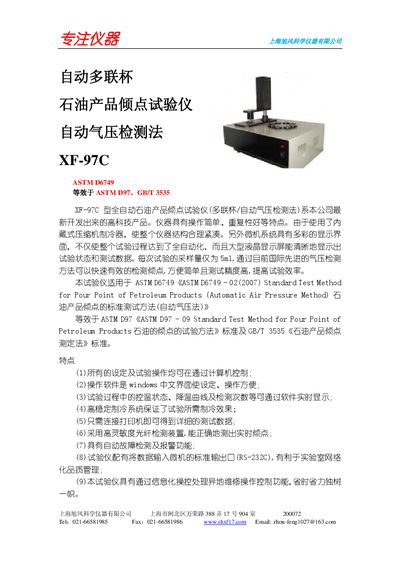

A product leaflet for the Shanghai Xufeng XF-97C automatic pour point tester, which uses an air pressure detection method and meets ASTM D6749/D97 and GB/T…
The Shanghai Xufeng XF-97C is a high-tech instrument developed by the company for testing the pour point of petroleum products. It utilizes an internal compressor cooling system and a computer-controlled microcomputer interface to automate the testing process, ensuring simple operation and high repeatability.
Key features include a stable refrigeration system, a high-sensitivity fiber optic detection device for accurate real-time measurements, and automatic fault alarm functions. The instrument supports data printing via standard A4 color inkjet printers and connects to PCs via RS-232C interfaces for networked quality management. This manual is written in Chinese.
| Test Temperature Range | -80°C to 50°C (with external cascade refrigeration unit) |
|---|---|
| Temperature Resolution | 0.1°C |
| Pour Point Detection Method | Fiber optic sensor |
| Temperature Control Sensor | Special platinum resistance sensor |
| Cooling Method | Semiconductor cascade cooler / Compressor cooling |
| Heating Element | Nickel-chrome wire heating tube AC.220V 200W |
| Power Supply | AC-220V, 50/60Hz, 1500W |
| Sampling Volume per Test | 5ml |
The instrument uses an advanced air pressure detection method.
The XF-97C tester operates within a temperature range of -80℃ to 50℃.
Each test requires a sample volume of 5ml.
The buzzer sounds for 10 seconds, and then the printer outputs the test conditions and data.
