Shanghai Sangbo STR-6 Wireless Data Transmission Module User Manual

The manual provides specifications, wiring, and operation instructions for the Shanghai Sangbo STR-6 wireless data transmission module.

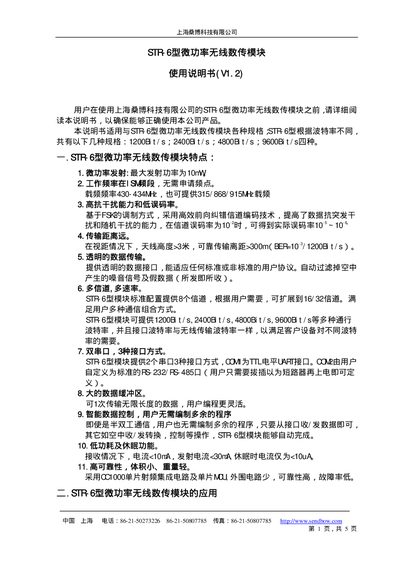

Shanghai Sangbo STR-6 Wireless Data Transmission Module User Manual - cover page
Brand
Shanghai桑博
Category
Other
Document type
User Manual
Language
Chinese
Pages
5
File format
PDF
File size
33 KB
Published
14 March, 2012
Updated
30 September, 2026
MD5 checksum
3AD28A6897D877EC5D3309E80B25F872
PDF
Shanghai Sangbo STR-6 Wireless Data Transmission Module User Manual PDF

About this manual

This document describes the Shanghai Sangbo STR-6 module, a low‑power wireless data transmission device operating in the 430‑434 MHz ISM band. It includes electrical characteristics, supported data rates, and interface options such as RS‑232, RS‑485 and TTL UART.

The manual also details power supply requirements, pin assignments, antenna configuration, and troubleshooting tips, helping users integrate the module into their systems safely and efficiently. This manual is written in Chinese.

What's inside

  • Introduction
  • Technical Specifications
  • Power Supply
  • Pin Assignment
  • Communication Interfaces
  • Antenna Configuration
  • Operation Modes
  • Troubleshooting
  • Safety Information

Specifications

Supported data rates1200, 2400, 4800, 9600, 19200 Bit/s

Frequently asked questions

What data rates does the STR‑6 support?

The module supports 1200, 2400, 4800, 9600 and 19200 Bit/s.
