The YD69 rotation speed sensor from Shanghai Cezhen measures wheel and shaft speed with dual‑channel Hall output and forward/reverse detection.
The YD69 rotation speed sensor is designed for detecting wheel and shaft speed as well as linear velocity. It offers a wide frequency range from 0 Hz to 20 kHz and provides two output channels with a 90° phase shift to enable forward/reverse discrimination. The sensor is non‑contact, wear‑free, and features robust construction with IP68 sealing and strong vibration resistance.

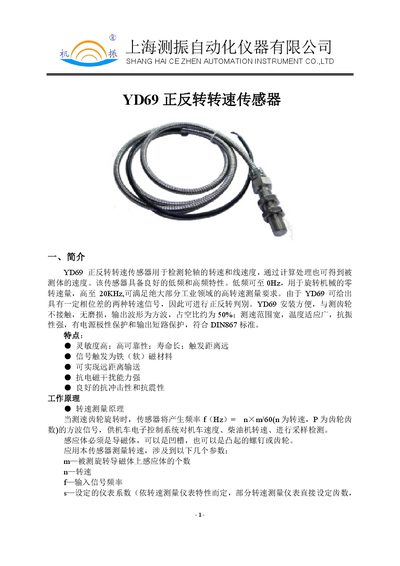

The manual includes installation guidelines, wiring connections (brown + 24 V, black COM, blue OUT), technical specifications, and selection options for different mounting configurations. It also provides troubleshooting tips and customization possibilities for specific gear modules. This manual is written in Chinese.
| Frequency response | 0 ~ 20 kHz |
|---|---|
| Output channels | Dual channel |
| Output waveform | Square wave |
| Rise/fall time | 12 µs ± 40 % |
| Output amplitude (high level) | U - 0.7 (U = supply voltage) |
| Pulse duty cycle | 50 % ± 25 % |
| Phase difference between channels | 90 ° ± 30 ° (channel 1 leads) |
| Maximum load current | 20 mA (max) |
| Output impedance | < 47 Ω |
| Supply voltage | +24 VDC (5 V ~ 26 V allowed) |
| Power consumption current | ≤ 35 mA |
| Operating temperature | -40 °C ~ +125 °C |
| Vibration resistance | 10 Hz ~ 2 kHz, 30 g; Shock 100 g |
| Ingress protection | IP68 |
| Insulation strength | 1000 V 50 Hz 1 min (channel to housing) |
| Housing material | Stainless steel 304 |
| Cable type and length | 6×0.5 mm² shielded, standard 1.0 m |
| Installation gap | 0.5 ~ 2 mm (typical 1.0 mm) |
It provides two output channels with a 90° phase difference; the channel that leads indicates the rotation direction.
The sensor is powered by +24 VDC, with an acceptable range from 5 V to 26 V.
The sensor can drive up to 20 mA per channel.
