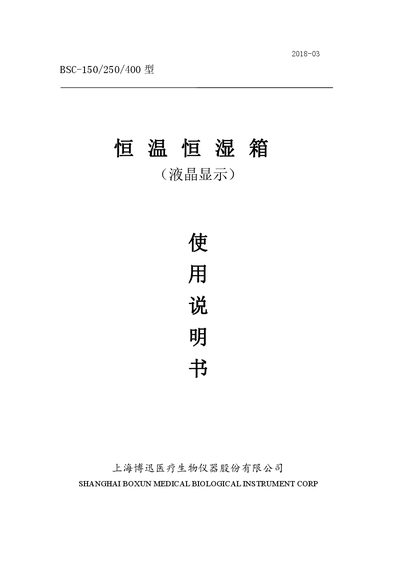

User manual for Shanghai Boxun BSC-150/250/400 temperature‑humidity chamber covering safety, installation, operation, maintenance and troubleshooting.
This manual provides safety warnings, installation guidelines, operating procedures, and maintenance instructions for the Shanghai Boxun BSC‑150/250/400 temperature and humidity chamber. It includes detailed product specifications, wiring diagrams, and a parts list to help users set up and operate the equipment safely.
The document also contains a troubleshooting section, fault codes, and recommended preventive measures to ensure reliable performance in laboratory and research environments. This manual is written in Chinese.
| Temperature range (no humidity) | 0~60 °C |
|---|---|
| Temperature range (with humidity) | 10~40 °C |
| Temperature uniformity | ±1 °C |
| Temperature fluct动度 | ±0.5 °C |
| Humidity range | 50‑90 %RH |
| Humidity fluctuation | ±5 % |
| Power supply voltage | ~220 V ±10 % 50 Hz |
| Input power (BSC‑150) | 1300 VA |
| External dimensions (BSC‑150) | 650 × 680 × 1400 mm |
| Internal dimensions (BSC‑150) | 510 × 390 × 760 mm |
| Effective volume (BSC‑150) | 151 L |
| Weight (BSC‑150) | 105 kg |
After power is restored, check and verify the temperature, humidity, segment and timer settings before restarting the device.
Check the temperature sensor (model PT100) and the humidity sensor (model HIH‑4021) for proper operation when a sensor alarm occurs.
