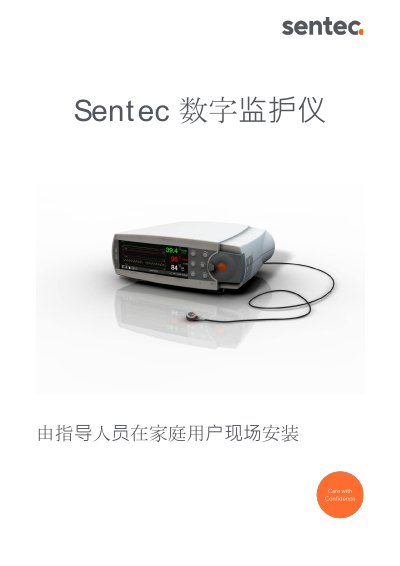

This is the user manual for the Sentec SDM digital patient monitor, covering installation, configuration, and maintenance instructions.
The Sentec SDM is a Class I medical electrical equipment device designed for home care monitoring. This manual provides guidance for trained personnel on installing the system in a patient's home or clinical setting, including specific steps to configure the unit and connect it to an isolation transformer.
Proper setup requires disabling menu access to prevent unauthorized changes by patients and ensuring all connections meet safety standards. The document details the connection of the Sentec isolation transformer (RFT100VA), which is required for operation, along with instructions on maintenance schedules and expected service life for various components. This manual is written in Chinese.
The Sentec SDM monitor has an expected lifespan of 7 years under normal handling and maintenance.
The SDM monitor must be operated between 5 °C and 40 °C.
The isolation transformer must be tested electrically at least every 6 months.
