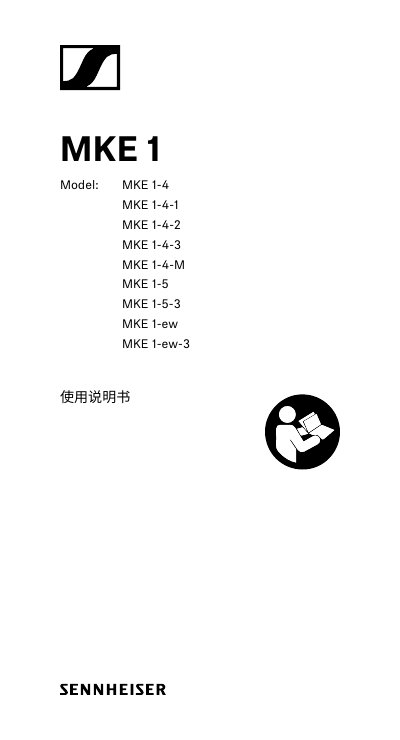

The Sennheiser MKE 1 series user manual provides safety instructions, setup steps, accessories, and technical specifications for the clip‑on condenser…
This manual begins with important safety instructions, covering proper handling, approved accessories, protection against moisture, and warranty conditions. It also explains how to attach the microphone to clothing or the body and how to use the optional frequency response adjustment caps.
The second part describes the supplied accessories, such as the small and large frequency response caps, makeup protection caps, and optional mounting kits. Technical specifications—including pickup pattern, frequency range, sensitivity, impedance, noise level, SPL, cable length, and dimensions—are listed for reference. This manual is written in Chinese.
| Frequency range | 20 – 20,000 Hz, ±2.5 dB |
|---|---|
| Sensitivity (1 kHz) | 5 mV/Pa, ±2.5 dB |
| Nominal impedance | 1000 Ω |
| Minimum load impedance | 4.7 kΩ |
| Equivalent noise level (A‑weighted) | 27 dB |
| Maximum SPL | 142 dB |
| Cable length | 1.6 m |
| Microphone diameter | 3.3 mm |
| Weight (without plug and cable) | 0.1 g |
The package includes the MKE 1 microphone, a small frequency response adjustment cap (MZC 1‑1), a large frequency response cap (MZC 1‑2), three makeup protection caps, and the user manual.
Sennheiser provides a 24‑month warranty for the product.
The microphone comes with a 1.6 m cable.
