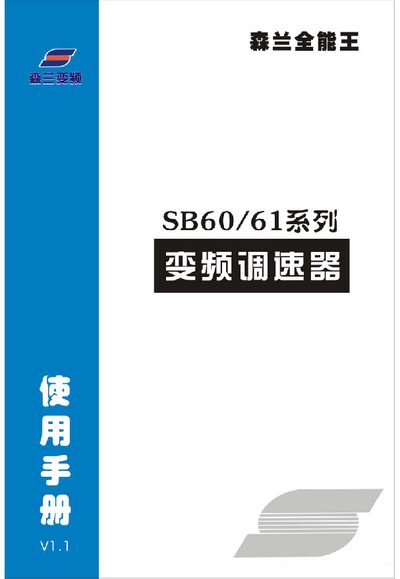

Official user manual for the Senlan SB60/61 series variable frequency drive, covering installation, wiring, operation, and maintenance.
The Senlan SB60/61 series variable frequency drive (VFD) is a high‑performance digital‑processor‑controlled inverter with vector control and multiple functional groups. This manual provides safety guidelines, installation steps, wiring diagrams, and detailed operation instructions to ensure reliable and safe use.
Key sections include product overview, installation and wiring, operation panel functions, functional parameter tables, maintenance procedures, fault handling, and peripheral equipment connections. Follow the recommended procedures to avoid accidents and to maintain optimal performance. This manual is written in Chinese.
| Input voltage | 3‑phase 380 V 50/60 Hz |
|---|---|
| Output voltage | 3‑phase 0‑380 V 0.1‑400 Hz |
| Rated current | 18 A |
| Rated power | 7.5 kW |
| Model example | SB60G7.5 |
| Operating temperature range | -10 °C to 40 °C |
| Power range (SB60 series) | 0.75‑4 kW |
The product is covered for one year, or eighteen months from the date on the nameplate, whichever is longer.
Install the VFD on non‑combustible metal or other non‑flammable material; do not mount it in environments with explosive gases.
Ensure all wiring is completed and the cover is installed before connecting power, otherwise there is a risk of electric shock.
