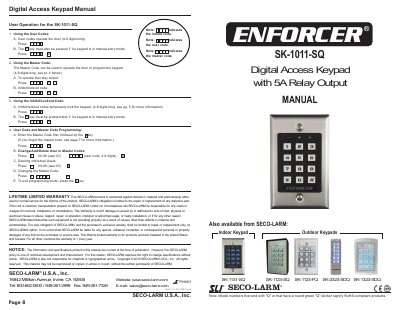

This manual provides operating and programming instructions for the SECO-LARM SK-1011-SQ digital access keypad, including user code setup, relay output…
The SECO-LARM SK-1011-SQ is a self-contained security keypad designed for office, commercial, and home installations. It features a built-in 5-Amp relay output that can be programmed for timed or ON/OFF operation to control electronic door strikes, alarms, chimes, or alarm control panels. All programming data is stored in non-volatile EEPROM memory.
| Operation voltage | 12-24 Volts AC/DC |
|---|---|
| Stand-by current drain | 10mA @12VDC |
| Active current drain (press keypad key) | Under 30mA |
| Relay output capacity | 5A @ 28VDC, Form "C" |
| Max user codes | 100 user codes |
Enter the Master Code followed by the key.
The keypad will lock out for 30 seconds after 10 successive wrong codes.
