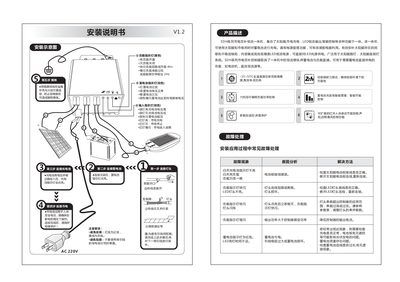

Installation guide for SDH constant‑current integrated units and controllers used in solar street‑light and garden‑light systems.
The SDH series combines solar, AC charging, LED constant‑current output and intelligent control in a single unit. It can charge batteries from both solar panels and mains power, manage power distribution, and protect against over‑voltage, under‑voltage, and overload conditions. The integrated unit also supports infrared human detection, voice control, remote communication, and six programmable load‑power time slots.
The controller version removes the constant‑current module, allowing direct power supply to loads such as motors or DC constant‑current sources. The manual provides step‑by‑step wiring, indicator‑light meanings, safety precautions, and common fault‑handling procedures to ensure reliable operation in temperatures from –35 °C to 55 °C. This manual is written in Chinese.
| Input voltage | 220VAC±20% |
|---|---|
| Output power (one‑unit) | ≤100W |
| Output voltage (12V system) | 14.5V |
| Output current (12V) | 7A |
| Typical efficiency | 92–96% |
| Dimensions | 130 × 83.5 × 49.5 mm |
Do not let the two conductors be exposed at the same time and keep the red (positive) and black (negative) wires separated.
It indicates a load short‑circuit or an open‑circuit condition.
The controller limits overload to 1.25 × rated current for 60 seconds before cutting off.
