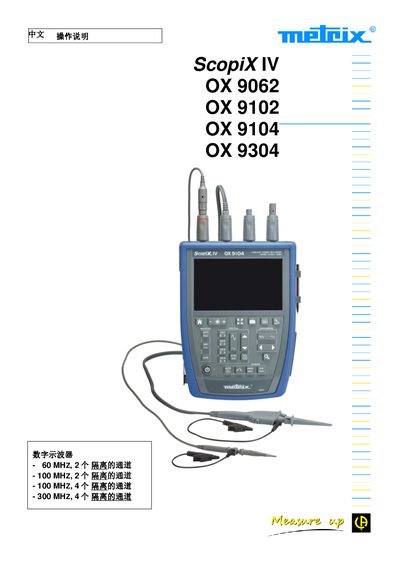

Operation manual for ScopiX IV series digital oscilloscopes covering safety, power, channel isolation, accessories and measurement functions.
The ScopiX IV series provides isolated‑channel digital oscilloscopes with models OX9062, OX9102, OX9104 and OX9304. The manual describes delivery status, included accessories, battery and power options, and the unique Probix accessories that enable automatic probe identification and safety monitoring.
Detailed sections cover the instrument’s front and rear layout, touch‑screen operation, multiple measurement modes (oscilloscope, multimeter, log, harmonic analysis), communication interfaces, firmware updates, and remote programming. Safety instructions, compliance with EN61010 standards, and maintenance procedures are also provided. This manual is written in Chinese.
| Bandwidth | 60 MHz (2‑channel), 100 MHz (2‑ or 4‑channel), 300 MHz (4‑channel) |
|---|---|
| Sampling Rate | 2.5 GS/s |
| Maximum Input Voltage | 1 400 V DC, 1 kV AC |
| Input Impedance | 1 MΩ ± 0.5 % (12 pF) |
| Memory Depth per Channel | 100 000 points |
| Horizontal Time Base | 1 ns to 200 s per division |
Charge the battery at temperatures between 0 °C and 45 °C.
It complies with EN61010‑1, EN61010‑031, EN61010‑2‑032 and meets CAT‑III 600 V requirements.
