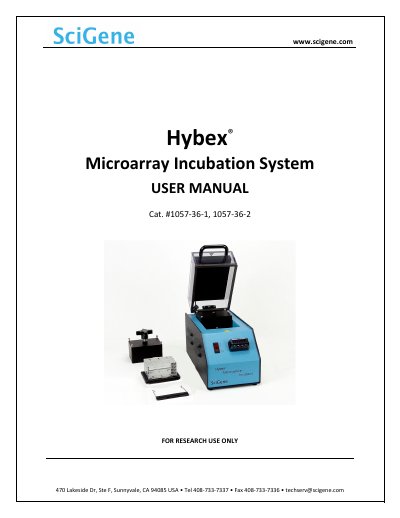

The SciGene Hybex® Microarray Incubation System User Manual provides safety, setup, operation, maintenance, troubleshooting, and specifications.
This manual explains the intended use of the Hybex® Microarray Incubation System, safety notices, and required precautions for laboratory operation. It includes warnings, cautions, and compliance information for both U.S. and European markets.
The guide details unpacking, installation, and step‑by‑step operation of the incubation chambers, temperature controller, and optional accessories. Maintenance procedures such as fuse replacement, cleaning, and calibration of the EZ‑Zone controller are covered, along with troubleshooting tips and full technical specifications.
| Electrical (115 V) | 115V AC; 50/60 Hz; 3 A |
|---|---|
| Electrical (230 V) | 230V AC; 50/60 Hz; 1.6 A |
| Dimensions (cover closed) | 10 × 6 × 12 inches (21 × 15 × 30 cm) |
| Weight (without block) | 6 lb (3 kg) |
| Temperature Range | Ambient +5 °C to 99 °C |
| Temperature Regulation | ± 0.2 °C |
| Temperature Controller | Digital PID, single loop |
| Temperature Display | Actual or Set single LED |
| Digital Thermometer Output | Thermocouple |
Turn the power switch OFF, unplug the unit, open the removable fuse block behind the power‑cord receptacle, remove the blown fuse and replace it with one of the same amperage and voltage as shown on the label.
The system maintains temperature within ± 0.2 °C of the set point.
