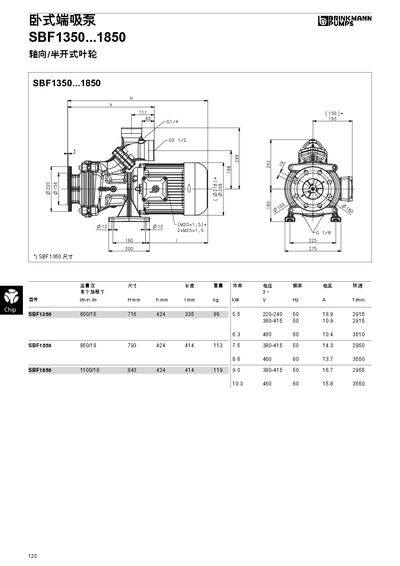

Technical data sheet for the SBF1350‑1850 horizontal end suction pump series, detailing dimensions, flow, head, power, voltage and material specifications.
The SBF1350‑1850 series are compact horizontal end suction centrifugal pumps designed for horizontal installation near a water tank. They feature a direct‑drive impeller on an extended motor shaft, a mechanical seal (SiC) and a 45 mm (G ¼) flange that supports both horizontal and vertical piping.
The sheet lists key performance figures such as flow rates from 600 L/min (SBF1350) to 1100 L/min (SBF1850), heads up to 18 m, power consumption from 1.5 kW to 9.0 kW, and noise levels between 71 dBA and 74 dBA. Materials include cast‑iron pump bodies and end caps, cast‑steel impellers, and steel shafts. This manual is written in Chinese.
| Flow (SBF1350) | 600 L/min |
|---|---|
| Head (SBF1350) | 15 m |
No, these pumps cannot self‑prime and must be supplied with liquid by gravity.
