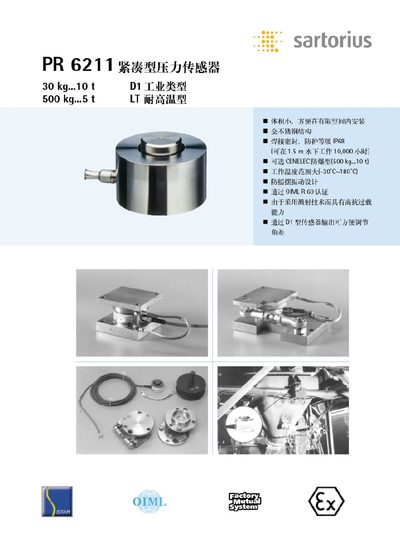

This Sartorius product leaflet describes the PR6011 and PR6211 sensor installation kits, including standard and stainless‑steel versions, technical…
The document presents the installation kits for the PR6011 and PR6211 sensors. Two material versions are offered: a zinc‑plated carbon‑steel (N‑version) and a stainless‑steel 1.4301 (S‑version). Both standard and MiniFLEXLOCK variants are available, with optional limit stops that protect against horizontal forces.
Technical data such as bolt size, maximum horizontal load, weight, and dimensions are listed for each kit model, together with ordering numbers and packaging details. Contact information for Sartorius offices in China is provided at the end of the leaflet. This manual is written in Chinese.
| Bolt size (PR6011/10, PR6011/30) | M10 |
|---|---|
| Bolt size (PR6011/11, PR6011/40) | M12 |
| Bolt size (PR6011/00) | M6 |
| Maximum continuous horizontal force (MiniFLEXLOCK PR6011/30) | 5 kN |
| Maximum break force (MiniFLEXLOCK PR6011/30) | > 10 kN |
| Maximum continuous horizontal force (MiniFLEXLOCK PR6011/40) | 20 kN |
| Maximum break force (MiniFLEXLOCK PR6011/40) | > 50 kN |
| Maximum continuous horizontal force (PR6011/00 limit stop) | 450 N |
| Material (N‑version) | Carbon steel, zinc‑plated |
| Material (S‑version) | 1.4301 stainless steel |
| Operating temperature (PR6011/03N) | -45 °C … +70 °C |
The PR6011/10 kit is mounted using M10 bolts.
It can sustain a maximum continuous horizontal force of 5 kN.
The kit operates from –45 °C to +70 °C.
