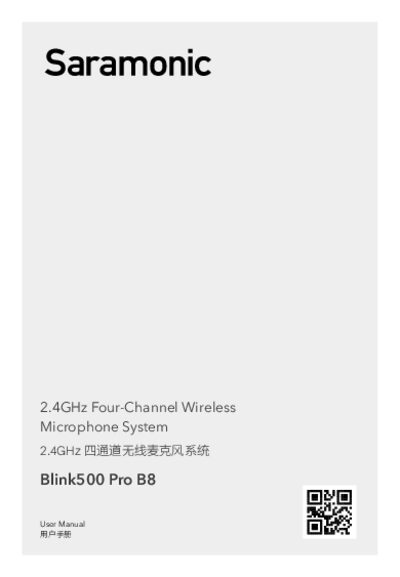

The Saramonic Blink500 Pro B8 User Manual provides setup, operation, and specifications for the 2.4 GHz four‑channel wireless microphone system.
The Blink500 Pro B8 kit includes four TXS clip‑on transmitters and one 4RX receiver, delivering digital audio over a 2.4 GHz link for DSLR cameras, smartphones, tablets, and computers. This manual explains how to power on, pair, and operate the transmitters and receiver, as well as how to monitor audio and adjust settings.
Key features covered are the OLED display, mono/stereo output modes, gain and mute controls, battery life, and the optional cables for connecting to various devices. Safety cautions, packing contents, and detailed menu navigation are also included.
| Transmission Type | 2.4GHz Digital Frequency Modulation GFSK |
|---|---|
| Operating Range (Without Obstacle) | Up to 164' (50m) |
| RF Output Power | < 10mW |
| Frequency Response | 50Hz-18kHz |
| Maximum SPL | 120dB SPL |
| SNR (TXS) | >78dB |
| Battery Life (TXS) | Approx. 4 hours |
| Weight (TXS) | 0.59oz (17g) |
Turn off all transmitters, long‑press the receiver’s SET button to enter the menu, select Pair Setting, confirm, then power on each transmitter and hold its Pair button (+ and –) for 3 seconds to enter pairing mode.
The system can operate up to 164 feet (50 m) without obstacles.
Each TXS transmitter runs for about 4 hours, while the 4RX receiver provides roughly 8 hours of continuous use on a single charge.
Use the Output Mode Setting in the receiver’s menu to select either mono or stereo.
