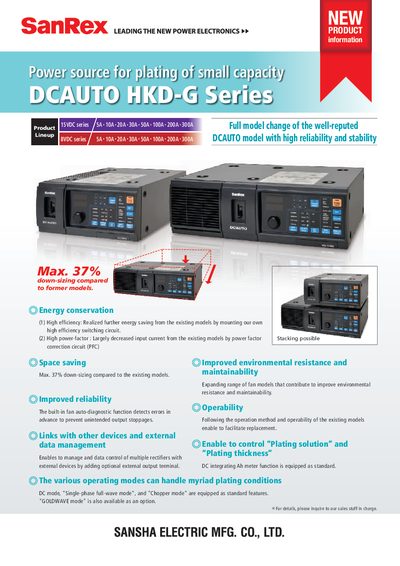

Overview of the Sansha Electric HKD-G Series power source for small‑capacity plating, including specs, features and optional functions.
The HKD-G Series power source from Sansha Electric provides a range of output currents from 5 A up to 300 A for 8 V or 15 V plating applications. It offers multiple operating modes, high efficiency switching, power‑factor correction and a compact design that reduces size by up to 37 % compared with previous models.
The unit includes built‑in diagnostics, optional external communication terminals, and various cooling options (natural or forced‑air). Detailed specifications cover input voltage ranges, control methods, accuracy, dimensions and mass, allowing easy integration into metal surface‑treatment systems.
| Rated Output Voltage | 8 V / 15 V |
|---|---|
| Rated Output Current | 5 A – 300 A |
| Control Method | PWM control switching method |
| Accuracy (RMS) | ≤ 1 % |
| Mass (approx.) | 7 – 10 kg |
It provides DC mode, single‑phase full‑wave mode and chopper mode as standard, with an optional GOLDWAVE mode.
Remote control is possible via RS‑485 communication, external start/stop signals, soft‑start and other external command functions.
The unit can deliver up to 300 A of output current.
