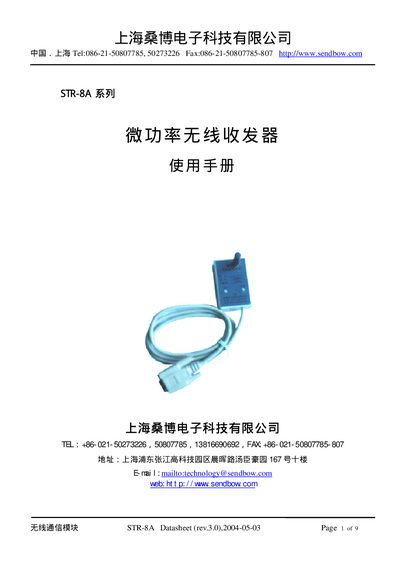

User manual for the Sangbo STR-8A micropower wireless transceiver covering features, specifications and configuration.
The STR-8A is a micropower wireless transceiver designed for low‑power data transmission. This manual provides an overview of its features, supported data rates, frequency bands and electrical characteristics.
Detailed sections describe pin assignments, wiring diagrams, power consumption, mechanical dimensions and recommended configuration settings for various operating modes. This manual is written in Chinese.
| Supported Data Rates | 1200, 2400, 4800, 9600, 19200, 38400, 76800 bps |
|---|---|
| Dimensions | 70 mm × 45.5 mm × 29 mm |
It supports 1200, 2400, 4800, 9600, 19200, 38400 and 76800 bps.
Typical TX current is less than 40 mA and RX current is less than 70 mA.
