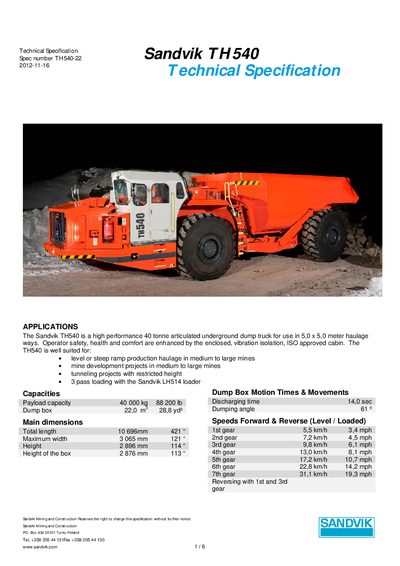

Technical specification for the Sandvik TH540, a 40-tonne articulated underground dump truck detailing dimensions, power train, and performance.
The Sandvik TH540 is a high-performance 40-tonne articulated underground dump truck designed for use in 5.0 x 5.0 meter haulage ways. It features an enclosed, vibration isolation, ISO approved cabin to enhance operator safety, health, and comfort. The vehicle is well suited for level or steep ramp production haulage, mine development projects, and tunneling projects with restricted height.
| Payload capacity | 40 000 kg (88 200 lb) |
|---|---|
| Dump box volume | 22,0 m3 (28,8 yd³) |
| Engine Output | 405 kW (543 hp) @ 1 900 rpm |
| Engine Torque | 2 761 Nm @ 1 200 rpm |
| Fuel Tank Capacity | 700 l (185 gal) |
| Total operating weight | 34 700 kg (76 400 lb) |
| Total loaded weight | 74 700 kg (164 600 lb) |
| Turning angle | ±42,5 ° |
| Discharging time | 14,0 sec |
The payload capacity is 40 000 kg (88 200 lb).
It is powered by a Volvo TAD1640VE Diesel engine with an output of 405 kW (543 hp).
The total operating weight is 34 700 kg (76 400 lb).
