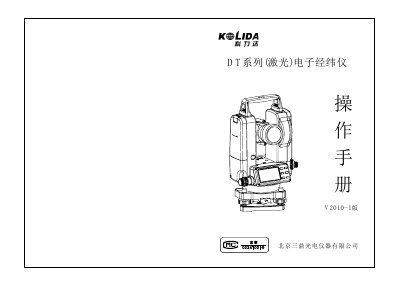

This manual covers the operation, setup, measurement functions, and maintenance of the SanDing DT Series electronic theodolite.
This user manual provides instructions for the SanDing DT Series electronic theodolite, including preparation, keyboard functions, and initial settings. It details how to perform basic measurements such as horizontal and vertical angles, as well as slope percentages and distance measurement using the stadia hairs.
The document also covers advanced features like memory storage, connection to electronic handbooks, and laser pointing functions for laser models. Additionally, it includes sections on instrument inspection, calibration procedures, technical specifications, and troubleshooting error codes. This manual is written in Chinese.
| Instrument Dimensions | 160x150x330mm |
|---|---|
| Instrument Weight | 5.2kg |
| Laser Wavelength | 630nm-670nm |
| Laser Output Power | ≤0.9mW |
| Max Measurement Distance | 150m |
| Center Spot Diameter | ≤Φ5mm/100m |
| Laser Axis Error | ≤10″ |
Avoid aiming the objective lens directly at the sun; install a filter if working in the sun.
The battery should be charged once a month if the instrument is stored for a long time.
The maximum measurement distance is 150 meters in the shade during the day.
Users must register online at www.kolida.com.cn after purchasing the machine.
