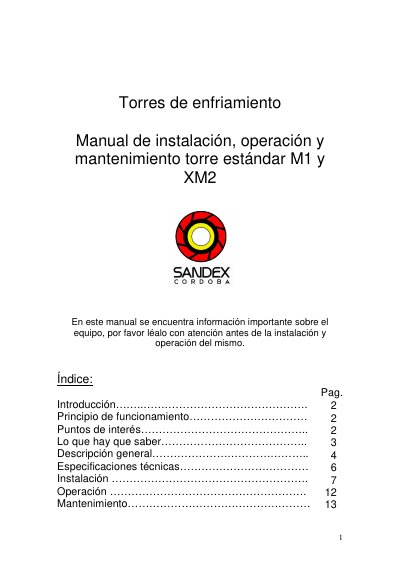

This manual provides installation, operation, and maintenance instructions for SANDEX standard cooling towers models M1 (20 TR) and XM2/M2 (30-340 TR).
The document serves as a comprehensive guide for the proper installation, operation, and maintenance of SANDEX water cooling towers. It explains that these high-quality machines are designed for heavy-duty outdoor service using forced air technology with either splash or laminar fill types.
Key sections cover the operating principle based on evaporation, specific considerations for standard tower height limitations regarding temperature drops, and a detailed breakdown of components such as the electrofan, droplet separator, fiberglass reinforced plastic (PRFV) casing, and distribution nozzles. The manual also includes technical specifications with dimensions and weights for various models. This manual is written in Spanish.
| Casing material | Fiberglass reinforced plastic (PRFV) |
|---|---|
| Fill height for 12-30 TR models | 0.46 m |
| Fill height for other models | 0.69 m |
Cooling is based on the ability to cede part of its mass to the air and with it total heat through evaporation.
The M1 module is used for 20 TR capacity, and the M2 module is grouped to constitute towers from 30 to 340 TR.
