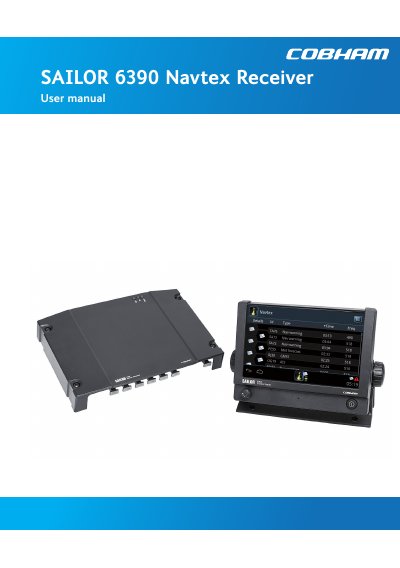

This manual provides operation, installation guidance, service, and maintenance instructions for the SAILOR 6390 Navtex Receiver.
The SAILOR 6390 Navtex Receiver is a marine navigation device designed to receive NAVTEX messages. It supports simultaneous reception on 490 kHz, 518 kHz, and 4209.5 kHz frequencies and is compatible with both active and passive antennas. The receiver features an Android-based operating system and can be used either as a standalone unit or integrated with the SAILOR 6004 Control Panel for INS support.
| Weight | 1.3 kg |
|---|---|
| Dimensions | 190 x 270 x 42.5 mm |
| Input voltage | 12-24 VDC |
| Power consumption | Typical 6.5 W |
| Operating temperature | -15 °C to +55 °C |
| Compass safe distance | 20 cm |
| IP rating | IP22 |
| Supported frequencies | 490 kHz, 518 kHz and 4209.5 kHz |
No, it is not a user maintainable unit and should not be opened beyond the outer plastic cover.
Installation and general service must be done by skilled service personnel.
The required distance is 20 cm from both standard and emergency magnetic compasses.
