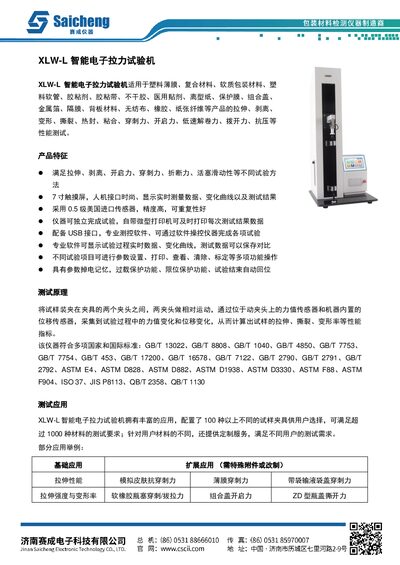

The XLW-L intelligent electronic tensile tester from Saicheng Instruments offers high‑precision force and displacement measurement for a wide range of…
The XLW‑L is a versatile electronic tensile testing machine designed for plastics, composites, soft packaging, adhesives, medical tapes, release papers, and many other materials. It supports tensile, peel, tear, heat‑seal, adhesion, puncture, opening force, low‑speed unwind, and compression tests, with a 7‑inch touch screen that displays real‑time data and curves.
Equipped with a 0.5‑grade imported US sensor, a built‑in micro printer, USB interface and dedicated software, the XLW‑L provides high accuracy, repeatability, data storage, and easy parameter setting. Over 100 types of sample fixtures are available, allowing testing of more than 1,000 material variations. This manual is written in Chinese.
| Force range | 500 N (standard), optional 50 N or 1000 N |
|---|---|
| Force resolution | 0.01 N |
| Displacement accuracy | ±0.5 % |
| Displacement resolution | 0.1 mm |
| Test speed | 10 ~ 500 mm/min (continuously variable) |
| Sample width | 30 mm (standard), optional 50 mm |
| Sample holding | Manual (pneumatic optional) |
| Travel (stroke) | 600 mm |
| Power supply | AC 220 V 50 Hz |
| Dimensions (L×B×H) | 450 mm × 450 mm × 1000 mm |
| Net weight | 60 kg |
The machine uses a 0.5‑grade imported U.S. sensor that provides high accuracy and good repeatability.
More than 100 different sample fixtures are supplied, allowing testing of over 1,000 material types.
