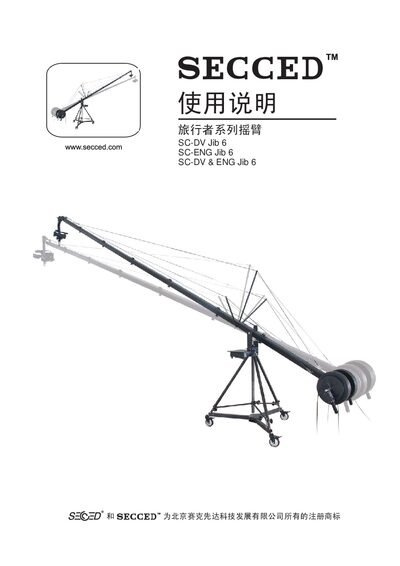

User manual for the Saike Xian Da SC-DV Jib 6 and SC-ENG Jib 6 electric jib, covering safety, assembly, operation, and technical specifications.
This manual provides safety guidelines and precautions for operating the 6 m electric jib, including requirements for level ground, wind limits, and proper grounding of the power supply. It also details the step‑by‑step assembly process for the foot wheels, tripod, rotating mechanism, arm sections, cables, and gimbal.
Operational instructions cover gimbal handling, camera mounting, balance cable adjustment, and remote‑control functions for both DV and ENG cameras. The final sections list technical specifications, packaging dimensions, and contact information for the manufacturer. This manual is written in Chinese.
| Length (including wheels) | 6 m |
|---|---|
| Height (excluding wheels) | 1.45 m |
| Pitch angle (including wheels) | 60° |
| Pitch angle (excluding wheels) | 50° |
| Power input | AC 100‑240 V |
| Power supply | DC 12 V 5 A |
| Gross weight | 66.5 kg |
| Box 1 dimensions | 600 × 450 × 220 mm |
| Box 2 dimensions | 1330 × 390 × 390 mm |
| Box 1 weight | 14.5 kg |
| Box 2 weight | 52 kg |
