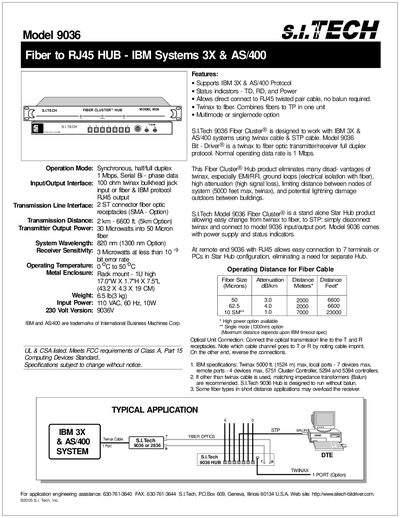

The S.I.Tech 9036 Fiber Cluster Hub provides twinax‑to‑fiber conversion for IBM 3X and AS/400 systems with 1 Mbps full‑duplex operation.
The S.I.Tech 9036 Fiber Cluster Hub is a stand‑alone star hub that converts twinax signals to fiber optic or RJ45 twisted‑pair connections for IBM 3X and AS/400 systems. It eliminates EMI/RFI, ground loops, and high attenuation associated with twinax cabling, and can be used outdoors without a balun.
The hub operates at 1 Mbps full‑duplex, supports multimode and single‑mode fiber (820 nm or 1300 nm), and offers up to 2 km (5 km optional) transmission distance. It includes status indicators, a metal 1U rack‑mount enclosure, and requires 110 VAC, 60 Hz power (10 W).
| Data Rate | 1 Mbps |
|---|---|
| Transmission Distance | 2 km (5 km option) |
| Transmitter Output Power | 30 microwatts into 50 micron fiber (820 nm) |
| Receiver Sensitivity | 3 microwatts at less than 10‑bit error rate |
| Operating Temperature | 0°C to 50°C |
| Input Power | 110 VAC, 60 Hz, 10W |
| Weight | 6.5 lb (3 kg) |
| Physical Dimensions | 1U high, 17.0"W x 1.7"H x 7.5"L |
It operates at a normal data rate of 1 Mbps full‑duplex.
No, the S.I.Tech 9036 hub is designed to run without a balun.
Up to 2 km, with an optional 5 km extension.
It needs 110 VAC at 60 Hz and consumes about 10 W.
