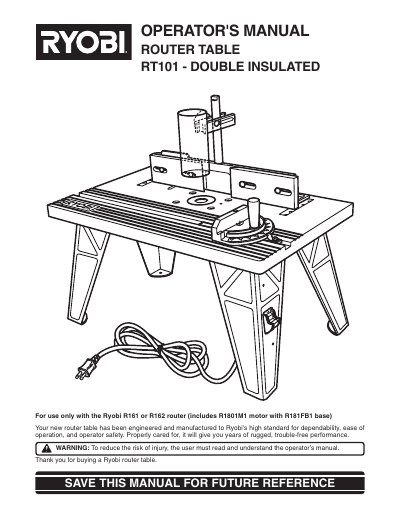

Ryobi RT101 Router Table Operator's Manual

Operator's manual for the Ryobi RT101 router table, covering assembly, adjustments, safe operation rules, and maintenance instructions.

Brand: Ryobi
Document type: User Manual
Language: English
Pages: 17
File format: PDF
File size: 815 KB
Published: 17 October, 2026
Updated: 17 October, 2026
MD5 checksum: BC293274EF1A221DD05772BE0EB1E05A
PDF: Ryobi RT101 Router Table Operator's Manual PDF

About this manual

This document is the operator's manual for the Ryobi RT101 double-insulated router table. It provides comprehensive instructions on unpacking, assembling the unit, making necessary adjustments to the fence and miter gauge, and operating the tool safely with a compatible Ryobi R161 or R162 router.

What's inside

Introduction
Rules for Safe Operation
Symbols
Specifications
Unpacking
Features
Assembly
Adjustments
Operation
Maintenance

Specifications

Table Dimensions	14 in. x 24 in.
Maximum Cutter Diameter	1-15/16 in.
Fence Length	16 in.
Miter Slot Size	3/8 in. x 3/4 in.
Electrical Rating	120 Volts, 60 Hz
Net Weight	18 lbs.

Frequently asked questions

Which routers are compatible with the RT101 table?

The router table is designed for use only with the Ryobi R161 or R162 router.

What safety glasses standard does this manual recommend?

The manual recommends wearing eye protection marked to comply with ANSI Z87.1.

What is the recommended wire gauge for an extension cord up to 25 feet?

A wire gage size (A.W.G.) of at least 14 is recommended.
