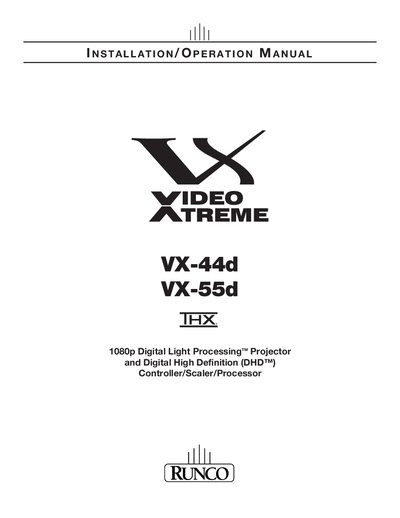

Installation and operation guide for Runco VX-44d and VX-55d DLP projectors and their DHD controller.
This manual provides step‑by‑step instructions for installing, setting up, and safely operating the Runco VX‑44d and VX‑55d digital light processing projectors and their Digital High‑Definition (DHD) controller/scaler/processor. It includes safety warnings, warranty information, and detailed specifications for both projector models and the controller.
The document also covers compliance with FCC, CE, and other regulatory standards, outlines the warranty claim process, and lists technical data such as brightness, contrast, lamp type, power requirements, and dimensions. Users will find guidance on connecting inputs, using the remote and RS‑232 commands, and maintaining the equipment for optimal performance.
| Projector Type | Digital Light Processing (DLP), 3‑chip, 16:9 SuperOnyx DMD |
|---|---|
| Native Resolution | 1920 × 1080 (16:9) |
| Brightness | 87.0 fL (VX‑44d); 107.0 fL (VX‑55d) |
| Contrast Ratio | 230:1‑280:1 (VX‑44d); 222:1‑278:1 (VX‑55d) |
| Light Output (ANSI Lumens) | 2780 LM (VX‑44d); 3475 LM (VX‑55d) |
| Lamp Power | 1,000 W Xenon (VX‑44d); 1,200 W Xenon (VX‑55d) |
| Weight | VX‑44d: 120 lb (54.4 kg); VX‑55d: 130 lb (59 kg) |
The VX‑44d operates on 100 to 240 VAC (auto‑sensing), 50/60 Hz and consumes 1,650 Watts.
