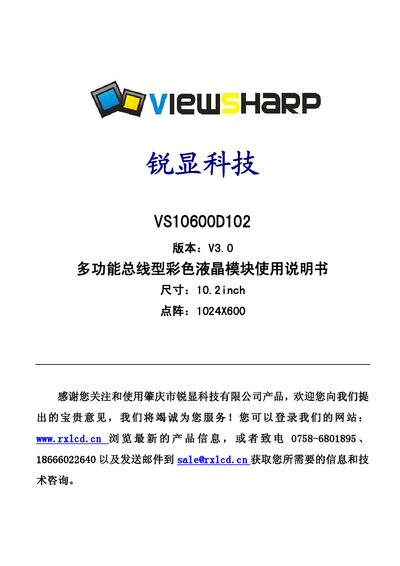

User manual for the RuiXian VS10600D102 multifunction bus-type color LCD module, covering features, interfaces, specifications and usage.
The VS10600D102 is a 10.2‑inch color LCD module that can operate in two modes: a bus mode with 8‑16‑bit parallel and SPI interfaces, and a smart mode with RS232/RS485 and optional USB. It includes a resistive touch panel, PWM backlight control, and up to 1 GB of onboard Flash for image storage.
The manual provides detailed electrical characteristics, pin definitions for all connectors, connection diagrams, timing charts, command sets, and software tools for image download and font generation. Additional resources such as initialization code and utility programs are available from the manufacturer’s website. This manual is written in Chinese.
| Storage Temperature | -30 to 85 °C |
|---|---|
| Working Temperature | -20 to 70 °C |
| Working Current | 60 to 650 mA (typ 600 mA @5 V) |
| Bus Mode Input Voltage | 3.0 to 5.2 V (typ 3.3 V/5.0 V) |
| Smart Mode Input Voltage | 5 V or 9‑24 V |
| Backlight Input Voltage | 5 V / 12 V |
| Output Voltage | 3.0 to 5.2 V (typ 3.3 V/5.0 V) |
| Viewing Angle | 12° / 6° |
| Module Size | 257.8 mm × 148 mm |
| View Area Size | 225.4 mm × 127.9 mm (16:9) |
| Dot Pitch | 0.063 mm × 0.209 mm |
| Dot Spacing | 0.219 mm |
It supports an 8‑16‑bit parallel bus, 3‑wire or 4‑wire SPI, RS232/RS485 serial ports, and an optional USB interface for image transfer.
In bus mode the module runs from 3.0‑5.2 V, while the smart mode can be powered by 5 V or 9‑24 V, and the backlight can use 5 V or 12 V.
Image files can be downloaded to the onboard Flash using the provided software tools, which are available for download from the RuiXian website.
Both operating modes include up to 1 GB of Flash memory for storing pictures and other data.
