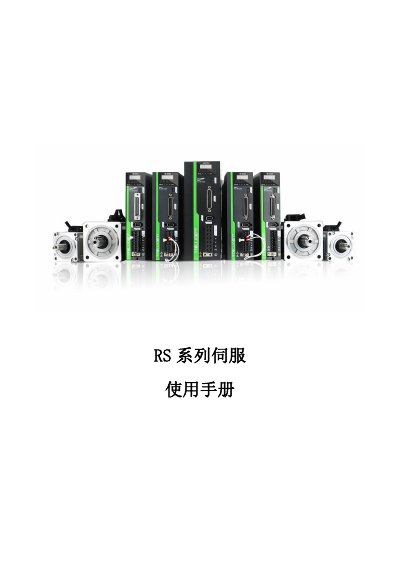

Ruite Technology RS Series Servo V3.0 User Manual

About this manual

The RS Series V3.0 servo drive, developed by Ruite Technology, is a third‑generation AC servo controller supporting MODBUS communication and three basic control modes (position, speed, torque). It is designed for a power range of 0.05 – 3 kW and can be paired with 17‑23‑bit absolute encoders.

The manual provides safety guidelines, detailed installation steps, wiring diagrams, panel operation instructions, parameter settings, communication configuration, fault codes and an appendix of parameter tables. It is intended for end users and service technicians who need to set up, operate, and maintain the drive and its associated servo motor. This manual is written in Chinese.

What's inside

• Safety Reminders
• Product Information and Installation
• Servo Drive and Motor Wiring
• Panel Display and Operation
• Operation Modes
• Parameter Settings
• Communication (MODBUS)
• Fault Handling
• Appendix – Parameter Tables

Specifications

Frequently asked questions

What communication protocol does the RS Series V3.0 servo drive support?

It supports MODBUS communication over an RS485 interface.

What are the three basic control modes of the drive?

The drive provides position control, speed control, and torque control.

What safety precaution must be taken before disconnecting power for service?

Power must be cut off for at least five minutes before any disassembly or repair.
